Applicable parameters

Roll length: 500mm; 700mm; 1100mm;

The maximum diameter (circumference) of the plate is 267 mm ( 838mm)

Machine size: length x width x height (cm)

89*62×104:109*62*104

149×62*104;

Power input: AC100~240V50/60hz

Compressed air source: input pressure > 0.8MPa, working pressure 0.75-0.8MPa

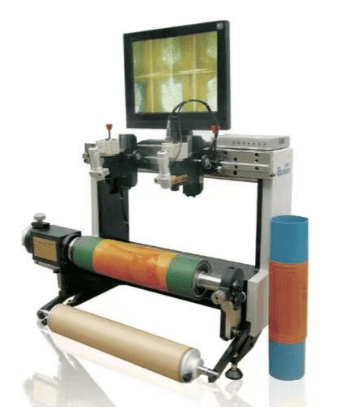

It is mainly used for web narrow-width printing machines where the printing plate roller is an air-expanding sleeve type.

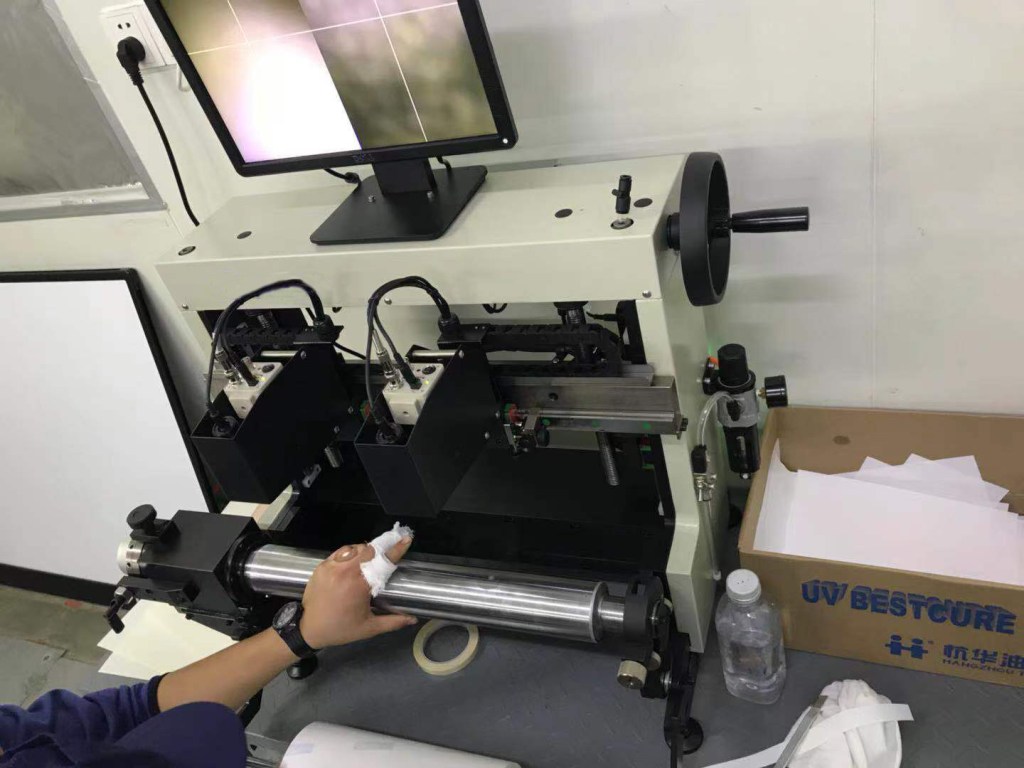

When attaching the plate, the air-inflatable sleeve plate roller is installed on a cantilever inflatable and rotatable air-inflatable mandrel, and the positioning of the inflatable mandrel is reliable and fast.

1. The version roller bracket of the plate mounter can be moved and adjusted, so the version roller or sleeve-type air-filled silver can be supported and used nearby regardless of its length.

2. The beam of the lens can be moved vertically up and down manually, and the moving range is large, which can adapt to the printing plate with a length of 838mm.

3. There is an axis adjustment mechanism on the left, which can easily adjust the parallelism between the engraved line of the plate roller and the cross line of the two cameras.

4. There is a clamping mechanism on the right side of the plate mounter, which can quickly clamp the plate roller to prevent the rotation of the plate roller from affecting the plate alignment accuracy during plate mounting.

5. A bracket is installed at the front and bottom of the plate mounter, which is used to place the double-sided tape of the roll paper, and the axial position can be adjusted, so it is convenient for cutting and using the double-sided tape.

6. The plate mounter adopts AC100~240V voltage input, which can be used in countries with different voltage standards.

7. The structure of the plate-mounting machine is stable and rigid, which ensures the precision of plate-mounting.

8. The two CCD lenses of the plate mounter have a magnification of 50X (17-inch monitor).

9. The two screens and cross lines of the plate mounter are displayed on a liquid crystal display on the left and right.

10. Using the plate mounter can improve the work efficiency of the plate mounter and the printing accuracy of the printed matter.

1.70mm Flexo Plate for Flexo Printing

1) Excellent dot and isolated line reproduction

2) Solid printing performance

3) High latitude of exposure and processing

4) Good ink transfer

5) High impression

Technical Parameters

Type	AA170-I
Thickness(mm)	1.70mm
Rigidity(Shore A)	60-62
Recommend relief depth(mm)	0.7-0.9
Image reproduction	2-95%
Maximum line line/inch	150
Minimum isolated line	0.15mm (0.0059inch)
Minimum isolated dot	0.2mm (0.0079inch)
Suitable Ink	Suitable for UV ink, some tested solvent inks, besides water and alcohol-based ink
	Film, Label, Flexible package, Carry bag, Folded paper box, Beverage package
Size mm(inch)
457×762 (18×30)	√
762×1016 (30×40)	√
762×1067 (30×42)	√
900×1200 (35.4×47.2)	√
1067×1524 (42×60)	√
1067×2032 (42×80)	√
1270×2532 (50*80)	√

1.14mm Analog Flexographic Flexo Photopolymer Plate

1) Excellent dot and isolated line reproduction

2) Solid printing performance

3) High latitude of exposure and processing

4) Good ink transfer

5) High impression

Technical Parameters

Type	AA114-I
Thickness(mm)	1.14mm
Rigidity(Shore A)	69-70
Recommend relief depth(mm)	0.6-0.7
Image reproduction	2-95%
Maximum line line/inch	150
Minimum isolated line	0.10mm(0.004inch)
Minimum isolated dot	0.20mm(0.0079inch)
Suitable ink	Suitable for water and alcohol based ink and UV ink
Mainly applicable field	Film, Label, Flexible package, Beverage package printing, and varnish

3.94mm Flexo Plates from China

1) Excellent dot and isolated line reproduction

2) Solid printing performance

3) High latitude of exposure and processing

4) Good ink transfer

5) High impression

Type	AA394-1
Thickness(mm)	3.94mm
Rigidity(Shore A)	43
Recommend relief depth(mm)	1.8-2.0
Image reproduction	3-95%
Maximum line line/inch	100
Minimum isolated line	0.3mm(0.0118inch)
Minimum isolated dot	0.50mm(0.0197inch)
Suitable Ink	Suitable for water and alcoholbased ink, incompatible with oil-based ink, hydrocarbon solvent or the ink containing ethyl acetate of more than 25%
Mainly applicable field	Corrugated board, Thick board, Paper
Size mm(inch)
457×762 (18×30)	√
762×1016 (30×40)	√
762×1067 (30×42)	√
900×1200 (35.4×47.2)	√
1067×1524 (42×60)	√
1067×2032 (42×80)	√
1270×2532 (50*80)	√

Do you know how to quickly convert your anilox rolls lines and volume values between metric and imperial unit measurements? You can use these formulas:

For volume:

Volume in cm³/m² = Volume in BCM/in² x 1,55 (*)
Volume in BCM/in² = Volume in cm³/m² ÷ 1,55

(*) 1,54899999999999 rounded to 1,55

For screen-count:

Screen-count in LPC = Screen-count in LPI÷ 2,54
Screen-count in LPI= Screen-count in LPC x 2,54

where:

BCM/in² = Billion Cubic Microns per square inch
cm³/m² = cubic centimeters per square meter
LPI = lines per inch
LPC = lines per centimeter

Abbreviations and habits:

Volume in imperial expression (BCM/in²) is usually indicated only with the acronym BCM.
Volume in metric expression (cm³/m²) is also indicated as cc/m², or just cc, or -less properly- as grams/m² or even just (and still inproperly) grams, referring to the weight of the dry ink that was transferred, but that’s a different thing.

Below is attached volume chart for some default values.

Contact: Jack Wu

Email:  jackwu@aniloxflexo.com

Whatsapp: +86-13038046501

Web:  https://aniloxflexo.com/

Youtube: https://www.youtube.com/channel/UCFYjcKsXSWScp1cTWCwGvkg

Linkedin: https://www.linkedin.com/in/jack-wu-12338117

Facebook: Jack Wu | Facebook

Since 1985, the company has started doing rotogravure work and now has emerged into rotogravure, digital printing, flexo plate engraving, anilox roll, sleeve manufacturing, masterbatch manufacturing, BOPA nylon film manufacturing.
The company is dedicated to manufacturing only.

It is also making end seal, flexo plate mounting sleeve, ultrasonic cleaning machine, flexo plate mounting machine, brushes, doctor blades and provide a complete solution for the flexo industry.

We are also making the best flexo plate mounting sleeve as attached.

Our products are widely used in Bobst machines, W&H, Uteco.

We are same level with Rossini, etc.

If customer are inquiring, these normally do not need drawings, normally shall be given these parameters:

1. Face length;
2.Repeat (printing circumference length)
3. Inner diameter
4.Notch design;
5. Single notch or double notch

my name is Jack Wu: email: sy.zaize.wu@yczbjt.com; whatsapp: +86-13038046501;

Description:

One-side PVA coated biaxially oriented nylon film. With BOPA as the base material, PVA is coated on the corona side and the other side is the non-corona side.

main application:

• Food packaging (nuts, biscuits, cakes, bread)

• Pet food packaging

• Inflatable packaging

Product performance:

• Good transparency

• Good oil repellency and fragrance retention

• Good water vapor barrier

• Good printing properties

Discription:
Boiled PVDC coated biaxially oriented nylon film on one side. With BOPA as the base material, PVDC is coated on the corona side, and the other side is the non-corona side.

PVDC

main application:

• Vegetable pack
• oil bag
• Meat and aquatic product packaging
• Boiled packaging

Product performance:

• Good gas barrier properties (O2, N2, CO2)
• Good oil and fragrance retention
• Good water vapor barrier
• Good printability and transparency
• Boiling conditions: 95°C, 30 minutes
• Good oxygen and water vapor barrier to prevent spoilage or spoilage of contents and extend shelf life

METALLIZED

– Baloons grade

– For cardboard laminations

Metallized BOPA films combines high oxygen and gas barrier with high mechanical resistance. Metal bond after metallization is very strong.

– Gauges from 10 to 15 microns

– One or two sides treated
