send me machine model number+photo, i will quote; below photos are for references.

mail:jackwu@aniloxflexo.com; whatsapp:+86-13038046501

Power	length	Main wave peak
200W-25KW	120mm-2500mm	365nm/420nm
Diameter	Material source	Parameters
18mm-30mm	Imported quarts/domestic quartz	Customizable
Features	Traditional process, precise manufacturing, stable performance, wide applicationAverage life 800-1000hoursEasy to install and replace

Power	length	Types
400W-5000W(single tube)	120mm-2000mm	near-infrared; far-infrared
Diameter	Material source	Parameters
10mm-32mm	Imported quarts/domestic quartz	Customizable Single tube golden color coating; white color coating; dual-tube golden color coating; special shape light
Features	Thermal radiation, easy to installQuick temperature increase; long service life; high efficient thermal radiation;Wide application in normal atmosphere or vacuum conditions

The electrical control system adopts imported PLC control, and the operation interface adopts touch screen, which can set working parameters and display operation conditions on the screen.
Unwinding adopts hydraulic lifting, hydraulic width adjustment, servo motor active unwinding, 3-belt 6-mechanical expansion head, automatic tension control;
Take up hydraulic lifting, servo motor take-up, adjustable width, roll take-up, mechanical head tension.
The system has the functions of meter counting, coil diameter calculation, meter number automatic shutdown, etc.
The system has perfect mechanical, electrical, gas and hydraulic integrated design, and takes complete safety protection measures.

The paper slitting machine is controlled by PLC touch screen and automatic tension control center coiling mode.
The main machine adopts variable frequency speed regulation. It can automatically count meters, alarm and stop. The tension is digitally
displayed on the touch screen.
The unwinding adopts photoelectric automatic correction to correct the
paper edge,he irregular material can be cut normally.
Circular knife (or straight knife) slitting, automatic waste discharge device
Manual (or pneumatic) feeding and winding shaft is equipped with cone
sleeve type inflatable shaft (3 “or 6”)
Winding adopts A and B axes (inflatable type)

Imported PLC for centralized control is used for electrical control system, man-machine is carried out by touch screen,

Set and display working parameters according to the requirements from
different products.
The drive of the main machine is controlled by the frequency converter and driven by the variable frequency motor. Theacceleration and deceleration are stable and fast.
The rewinding adopts slip air expansion shaft, which is driven by variable frequency motor and controlled by automatic tension.
Unwinding is controlled by frequency converter and driven by frequency conversion motor, with automatic tension control.
Automatic pushing device and automatic unloading device are adopted for winding, which are fully automatic and reduce labor intensity.
Unwinding adopts shaftless loading and unloading, oil pressure lifting and lowering, convenient loading and unloading, high efficiency, and automatic unwinding correction.
The circular knife is used for slitting, and the slitting plate surface is neat, and there is a waste blowing device.
The system has meter counting, winding diameter operation, automatic stop by setting length you need first.
The system has a perfect integration design with machine, electricity and pneumatic, and takes complete safety protective measures.

Imported PLC for centralized control,HMI is touch screen, it can set and display working parameters,according to different products.
Unwinder adopts motor active unwinding and automatic tension control
Loading&unloading of unwinder uses air shaft with pneumatic up&down and EPC system for high-efficiency.
Rewinder adopts frequency motor, roller diameter auto calculated by PLC with auto tension control
Slitting uses flat or circular knives for neat disc surface, the wastage blown by the blower
The system has function of meter counting, rewinding diameter calculation, auto stop when rewinding meter to set length
The system has a perfect integration design with mechanical, electricity, pneumatically and takes complete safety protective measures.

Petal type plate mounting, anilox and cylinder with quick change structure.
Printing unit easy operation, cylinder and anilox pressing one time successfuly.
Plate full servo shaftless transmission, automatically pre-print, time
saving & material saving.
Registering remains the same during lifting process.
Register position automatic memory function.

Suitable for eco-friendly packaging, such as the paper bag used for food
and healthcare industry, paper box, paper cup, the pre-printing carton of
paper bag, bag courier, milk carton medicine use.

Materials: Kraft paper, paperboard, coated paper, liner paper, laminated paper,
multilayer composite paper, carton board materials ect.

Contact: jackwu@aniloxflexo.com

1. Speed 150 meters/minutes

2. Drying tunnel 8 meters, 4 sections, external heating

3. 4 air inlet fans (1.5 kW)

4. 4 exhaust fans, hot air recycling for secondary use

5. The protective roller in the drying tunnel is driving roller and rotates the synchronous belt

6. Anilox roller coupling 1 piece 120 mesh installed with machine

7. Bass drum has built-in oil heating

8. Dual position automatic tension for rewinding

9. Front feeding dual-position ultrasonic edge correction and automatic tension

10. Dual-position ultrasonic edge correction and automatic tension for rear lowering material

11. Automatic tension for rear loading and unloading (no edge correction)

12. 1 piece of rubber roller under the big drum installed

13. Edge correction at the drying tunnel exit

14. Automatic tension touch screen PLC control for retracting and unwinding materials

15. There are 4 air expansion shafts in total and 1 head shaft.

16. Scraper dual air pressure motor action

17. The big drum motor and anilox roller motor are synchronized, and the swing arm is controlled by double frequency converters.

19. 2 frequency conversion motors for collecting materials

20. 1 pneumatic glue pump

21. 1 glue tray

22. The air expansion shaft for retracting and releasing materials moves left and right 20mm

The total power is 80 kW, the total length is 9 meters, the height is 3.2 meters, the width is 2.2 meters, and the total weight is 6 tons. The rubber rollers on the anilox rollers are polyurethane wdith 800 and 1300, 2 pieces each width.

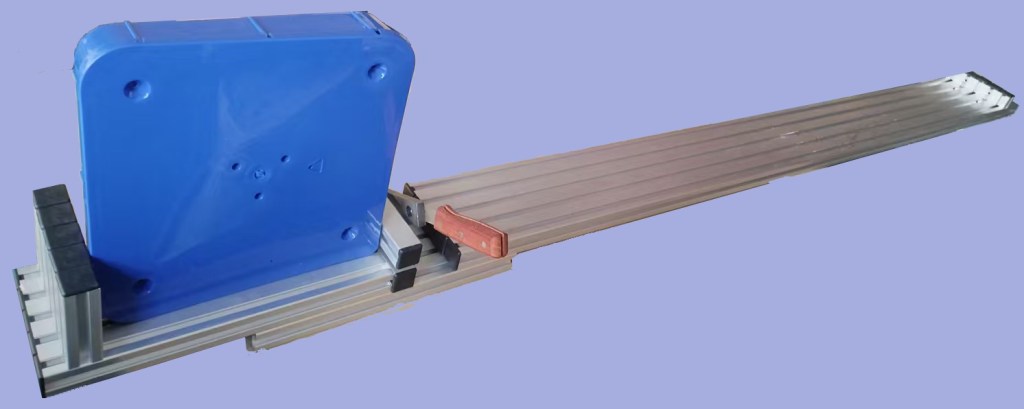

It will need: the drawing of installation area on the machine; the drawing of anilox roll; the desired doctor blade thickness and spec;

Do you also need circulating pump ?

The doctor blade is normally 35mm*0.203 thickness which you can buy from us carbon steel(germany), stainless steel, carbon steel (Japan materials).

The pump are available with imported BML, ARO pump and chinese made BSK brand, photos attached .

Kindly specifcy ustomer’s current status, is it needing a new ink chamber, or it has one open ink chamber, and want to replace the closed ink chamber with that open ink chamber, how many quantities needed, it the photo/video of current flexo machine ink chamber available, what is size of anilox roller, etc.

In China, my engineer can go visit customer, measure all data on the site, make fabrication and if there is some adjustment needed, we can solve it immediately.

For overseas customers, the communication and problem solving are very limited and it may needs customers to have problem solving ability themselves.

China BSK brand
