Product use:

The microscope is featured with little power consumption optical microscope system.

It is unique designed with compact size and can read the cell depth and cell shape.

The inner optical measuring meter can reach minimum resolution of 0.005mm/gird and optionally equipped with digital camera for computer processing of the data.

The optional digital camera is equipped with standard USB portal; the display system is equipped with interface of AV video and both systems can be connected with computer and with unique software, hardware, for easy storage.

The microscope is reliable in performance, easy to operate and compact, very suitable for anilox inspection.

Main Parameters:

It is available in three grades: 200X, 250X, 400X

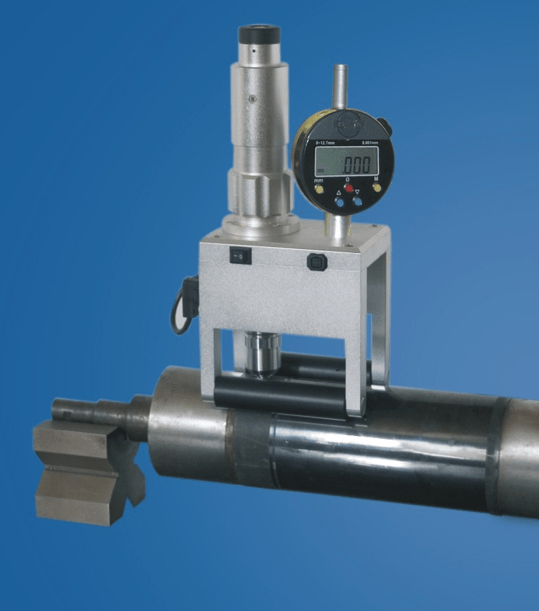

Instructions for use of 400X anilox cell inspection microscope

The microscope has a built-in low-power optical illumination system. Reasonable Structure, compact appearance, can be used to measure engraved metal, ceramics anilox roll with built-in optical measuring scale, minimum resolution up to 0.005mm/grid, equipped with a rechargeable high-energy power supply, and environmentally friendly nickel Hydrogen battery.

Main Specifications

1. Specifications:    400 ×

2. Magnification and corresponding working distance.

Upper magnification	20X
Lower magnification	20X
Total magnification	400X
Working distance	3.05mm

3. The 400X imaging diameter: 0.5mm

4. Microscope focusing range: 15mm

5. The minimum diameter of the observed texture: ￠60mm

6. Total weight of the instrument: 2kg

7. Physical size: 200×200×320mm

Operation Instructions

Place the microscope on the engraved surface to be tested, turn on the power of the microscope, adjust the lifting system, and observe from the eyepiece until the cell is clearly imaged and the reticle of the eyepiece is cleared observed, then it is ready for measurement and can observe the degree of cleanliness and physical condition inside the cell. (This microscope has non-metallic materials in the contact with the anilox roller, which can prevent the anilox surface from being scratched)

Depth calculation method:

1. Now adjust the microscope to the clearest image at the bottom of the anilox cell, put the digital display dial gauge at 0 by hand, and rotate the display; adjust the micro-mirror, adjust the microscope to the clearest image at the top of the reticulate pores. At this time, the reading of the window of the digital display dial gauge is the depth of the anilox cell
2. Repeat the above actions, observe 3 times, and take the average values to measure the depth of the cell. If you need to measure the mesh size of the entire anilox roll, you can use different sections of the anilox roll, repeat the above actions to calculate the average cell depth of the whole anilox roll.
3. If you feel that the light energy is insufficient, you can insert the charger into the charging hole of the microscope to charge, and the charging time is about 6 hours. Then it can be connected and continue to use for about 2 days.

How to use electronic digital dial indicator

The main functions:

* Set zero at any position, which is convenient for micro-measurement

* Conversion between metric and imperial systems, adapting to different unit systems

* Data retention

* Quick display

* Quickly follow the maximum value (only display the maximum value of a group of speeds)

* Quickly follow the minimum value (only display the minimum value of a group of speeds)

* Automatic power-off

* Equipped with a serial data output port, it can be connected with a computer or printer with RSR232 socket for data processing through an adapter.

* The position of the earrings on the back cover can be changed by 90°, which is convenient for different clamping environments.

Key’s functions:

* Metric/inch conversion key (mm/in): Press this button to perform metric/inch conversion at any position.

* Zero key (0): Press this key to set zero at any position, and use this key and M at the same time to perform function conversion.

* Function conversion key (M): Use this key and 0 key at the same time to perform function conversion. Select Data Hold. Press the “M” key, and the character “H” appears, which means the data is in the state of holding. Press the “M” key after use , the “H” disappears, and it turns to normal display.

Precautions

If the instrument is out of use, it should be placed in a dry place and covered with a dust cover. After long-term use, if the surface of the instrument lens

If there is dust, do not wipe it with your hands or other objects, and use special lens cleaning paper to wipe it off. The microscope can also be configured with a color CCD and a portable liquid crystal display, and can be equipped with a digital camera, which is convenient for computer data processing.

Processing, digital camera is equipped with standard USB interface, color display system is AV video interface, the two systems can be connected to any computer, and equipped with There are dedicated software and hardware for easy storage management.

Under normal use, the battery life of the digital display indicator is generally one year. When replacement is required, press and push the battery cover in the direction of the arrow to replace it. (Note: The positive pole of the battery must face up)

The dial indicator is a precision measuring tool, and it should be prevented from being hit or dropped during use, so as not to lose accuracy. When measuring, the moving speed of the measuring axis of the dial indicator cannot be greater than 0.35 m/s. The instrument is reliable in performance, easy to operate, easy to use, and beautiful in appearance. It can be used as a special testing instrument for anilox rollers, and it can be used in other industries as detection work.

Complete set of instruments :

Anilox Cell microscope: one set

Desiccant: one pack

Rechargeable power supply: one set

Optional parts:

The optional parts are the industrial camera and software which can work better for data storage inside computer. This does not include in the default package; will be additional charges under separate quote.

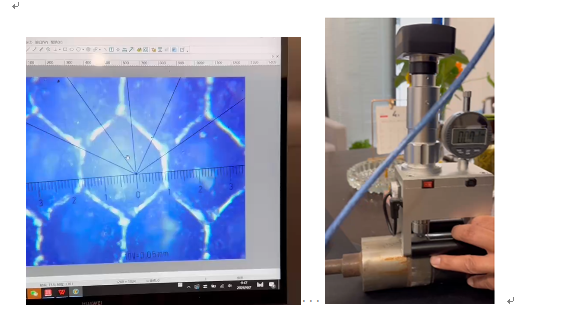

Optional parts photo

Contact:

Jack Wu

+86-13038046501

wuzaize2005@gmail.com

anilox cell microscope operation example with a personnal camera

anilox cell microscope operation example with optional industrial camera and computer, software(separate charged)
