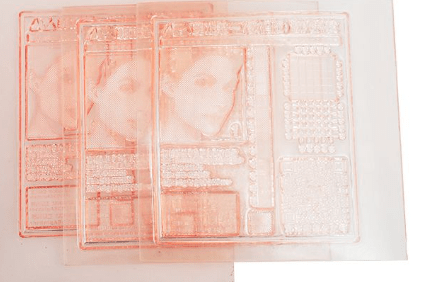

1.70mm Flexo Plate for Flexo Printing

1) Excellent dot and isolated line reproduction

2) Solid printing performance

3) High latitude of exposure and processing

4) Good ink transfer

5) High impression

Technical Parameters

Type	AA170-I
Thickness(mm)	1.70mm
Rigidity(Shore A)	60-62
Recommend relief depth(mm)	0.7-0.9
Image reproduction	2-95%
Maximum line line/inch	150
Minimum isolated line	0.15mm (0.0059inch)
Minimum isolated dot	0.2mm (0.0079inch)
Suitable Ink	Suitable for UV ink, some tested solvent inks, besides water and alcohol-based ink
	Film, Label, Flexible package, Carry bag, Folded paper box, Beverage package
Size mm(inch)
457×762 (18×30)	√
762×1016 (30×40)	√
762×1067 (30×42)	√
900×1200 (35.4×47.2)	√
1067×1524 (42×60)	√
1067×2032 (42×80)	√
1270×2532 (50*80)	√

1.14mm Analog Flexographic Flexo Photopolymer Plate

1) Excellent dot and isolated line reproduction

2) Solid printing performance

3) High latitude of exposure and processing

4) Good ink transfer

5) High impression

Technical Parameters

Type	AA114-I
Thickness(mm)	1.14mm
Rigidity(Shore A)	69-70
Recommend relief depth(mm)	0.6-0.7
Image reproduction	2-95%
Maximum line line/inch	150
Minimum isolated line	0.10mm(0.004inch)
Minimum isolated dot	0.20mm(0.0079inch)
Suitable ink	Suitable for water and alcohol based ink and UV ink
Mainly applicable field	Film, Label, Flexible package, Beverage package printing, and varnish

3.94mm Flexo Plates from China

1) Excellent dot and isolated line reproduction

2) Solid printing performance

3) High latitude of exposure and processing

4) Good ink transfer

5) High impression

Type	AA394-1
Thickness(mm)	3.94mm
Rigidity(Shore A)	43
Recommend relief depth(mm)	1.8-2.0
Image reproduction	3-95%
Maximum line line/inch	100
Minimum isolated line	0.3mm(0.0118inch)
Minimum isolated dot	0.50mm(0.0197inch)
Suitable Ink	Suitable for water and alcoholbased ink, incompatible with oil-based ink, hydrocarbon solvent or the ink containing ethyl acetate of more than 25%
Mainly applicable field	Corrugated board, Thick board, Paper
Size mm(inch)
457×762 (18×30)	√
762×1016 (30×40)	√
762×1067 (30×42)	√
900×1200 (35.4×47.2)	√
1067×1524 (42×60)	√
1067×2032 (42×80)	√
1270×2532 (50*80)	√
